SLP 37R

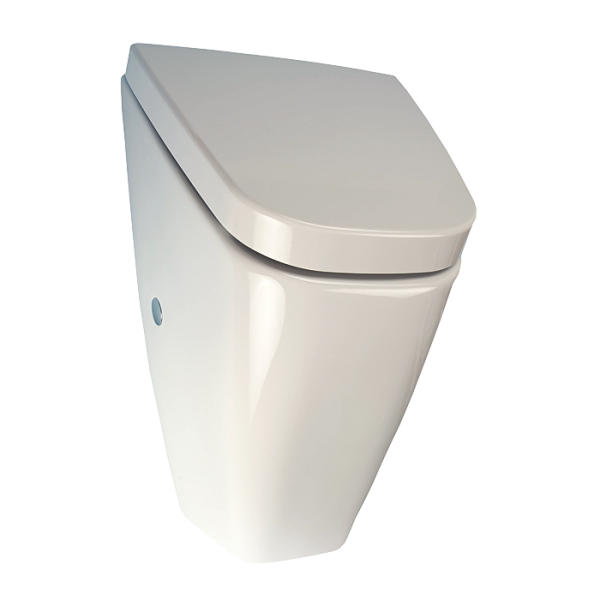

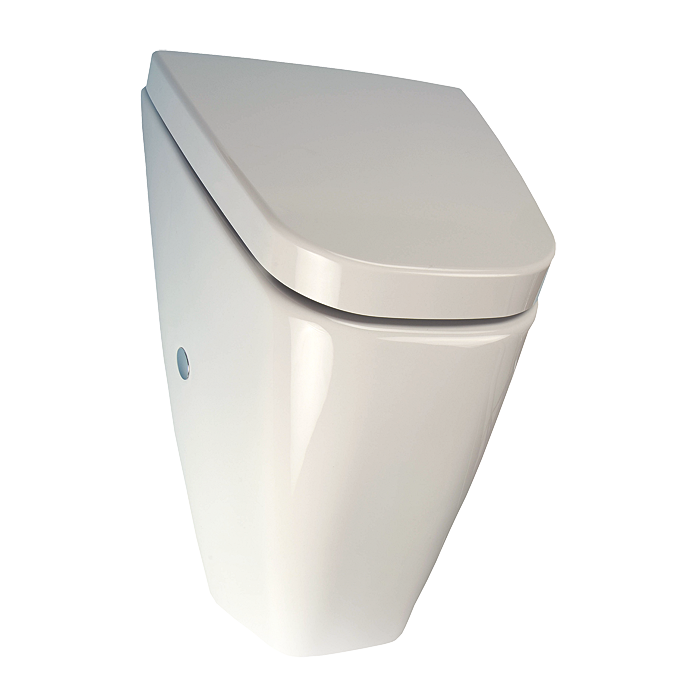

Писсуар Vila с крышкой с радарным устройством смыва, 24 В пост.

Характеристики

economy flushing by 1 liter of water
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
adjustable flushing time from 0,5 to 15,5 sec.
adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing

Арт. №	01374
Название	SLP 37R

Спецификация поставки

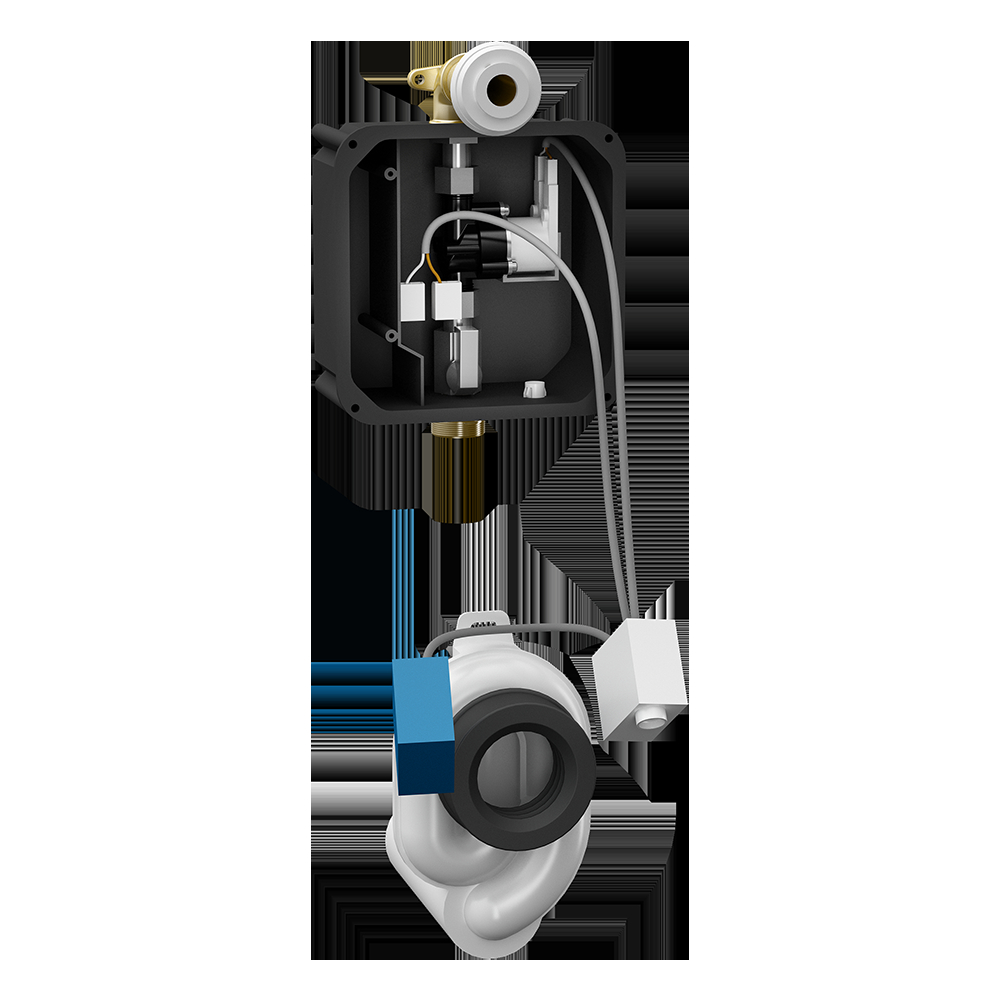

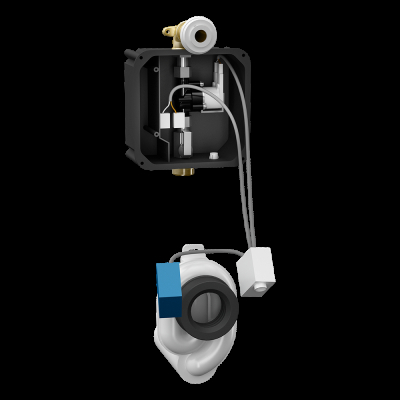

SLP 37R - supply No. 01374 - ceramic urinal with an integrated radar sensor and electronics; plastic mounting box with a brass screw-coupling, electromagnetic valve (1 pc.) and ball valve with a filter; special outlet fitting with a rubber seal; waste siphon; plastic cover for the urinal; mounting set

Технические данные

Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 24V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
