Радарное устройство смыва  на монтажной рейке, с встроенным источником питания для писсуара D-Code, 230 В/ 50 Гц


  • radar flushing unit for urinal D-Code (Duravit)
  • easy installation by the help of paper drill template
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
  • adjustable flushing time from 0,5 to 15,5 seconds
  • adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
  • parameters adjustment by remote control SLD 04 (without the necessity to dismantle the urinal from the wall)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball stop valve
  • radar flushing unit recharges a water to the siphon after each flushing
Арт. № 01545
Название SLP 54RZ

Спецификация поставки

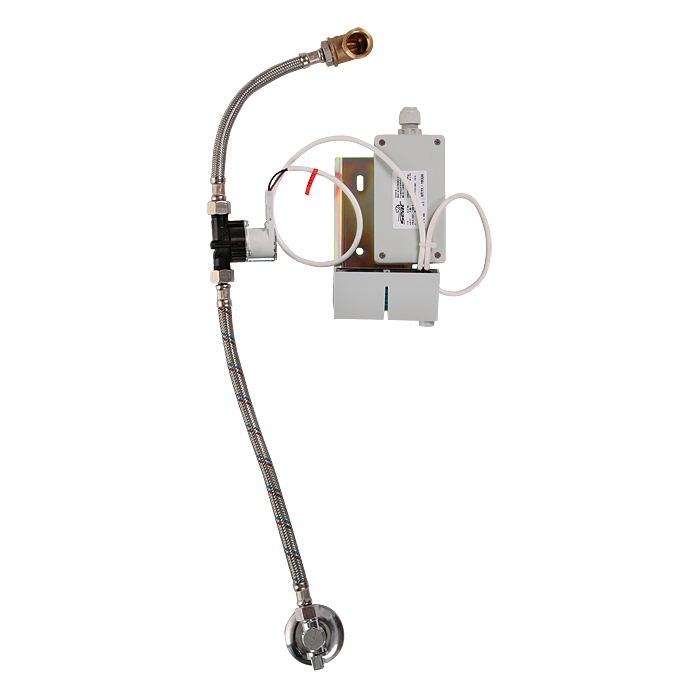

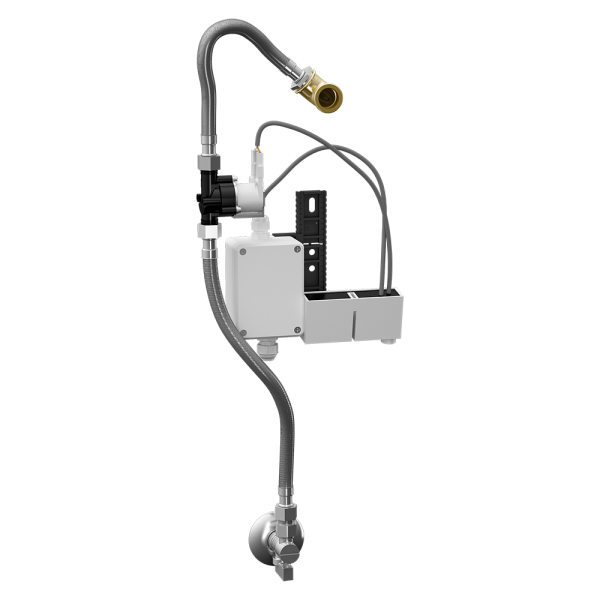

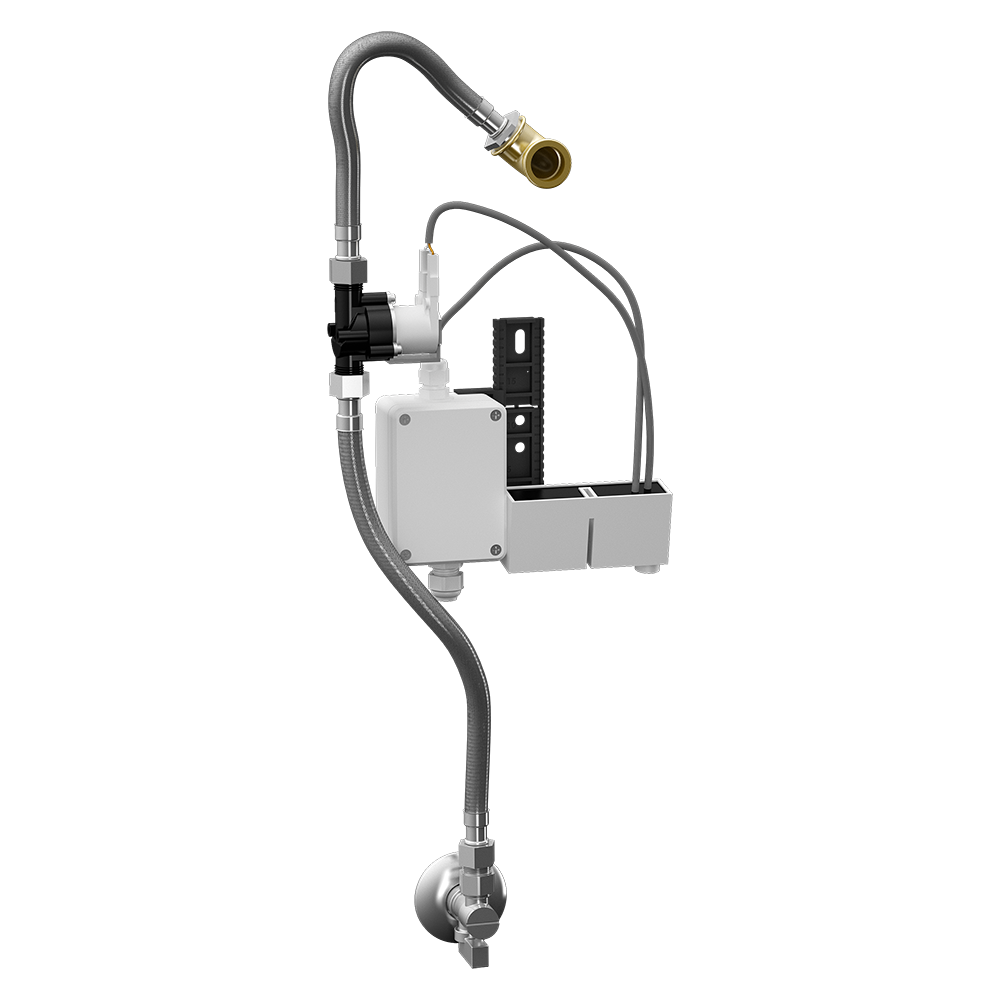

SLP 54RZ - supply No. 01545 - radar flushing unit on the mounting rail; electromagnetic valve (1 pc.); connecting hose; angle valve with a filter and non-return valve; inlet fitting with a rubber seal; paper drill template, integrated power supply, without siphon

Технические данные

Operating voltage: 230V AC/ 50Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber seal
