SLPN 05E

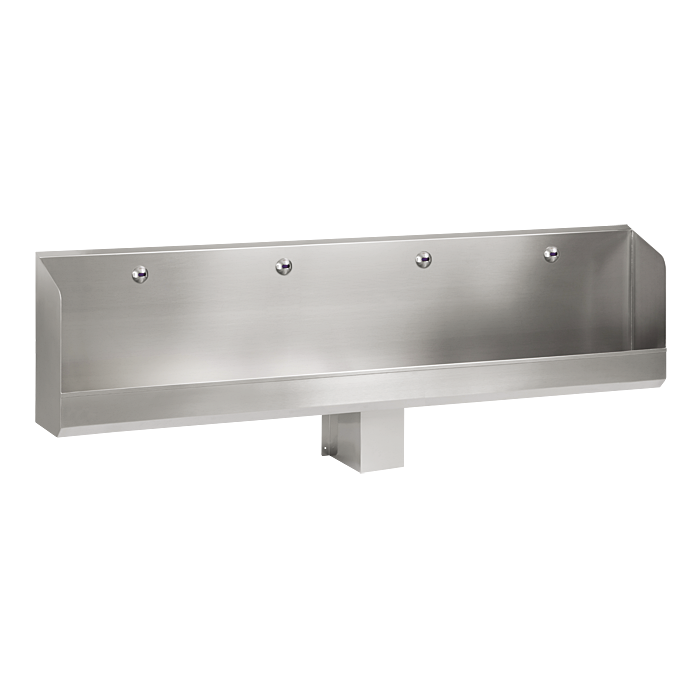

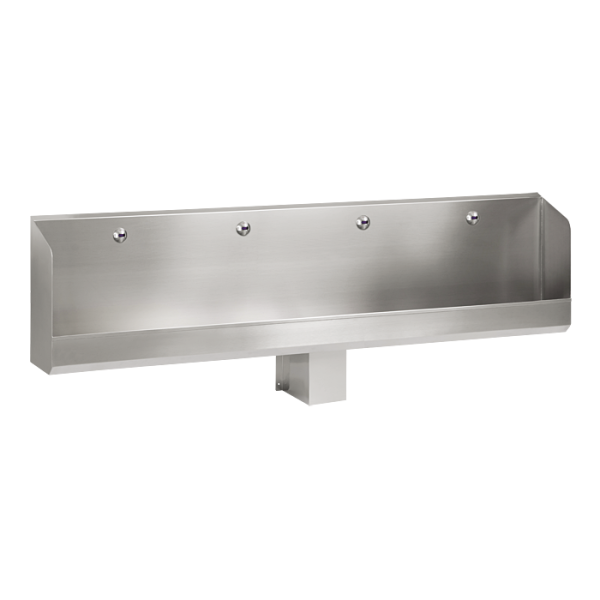

Нержавеющий автоматический писсуаровый желоб с инфракрасным датчиком (4 шт.), 2400 мм, 24 В пост.

Характеристики

vandal-proof
stainless steel wall hung urinal mangers with integrated automatic flushing units
mangers are delivered in the lengths 600, 1200, 1800 and 2400 mm
different number of flushing units according to the each model of manger
every flushing unit reacts independently to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 sec.
water flows after leaving active range
adjustable flushing time from 0,5 to 15,5 seconds
parameters adjustment by SLD 03 remote control
automatic hygiene flushing after 24 hours non-use
different lenghts could be made to order
material CrNi 18/10 (AISI-304)
brushed finish

Арт. №	91051
Название	SLPN 05E

Спецификация поставки

SLPN 05E - supply No. 91051 - stainless steel urinal manger 2400 mm with 4 automatic flushing units; electromagnetic valve (4 pcs.); angle valve (1 pc.); mounting set; cover for siphon; siphon

Технические данные

Operating voltage: 24V DC external
Active range: 0,3 - 0,7 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“
Stainless steel thickness: 1,5 mm
