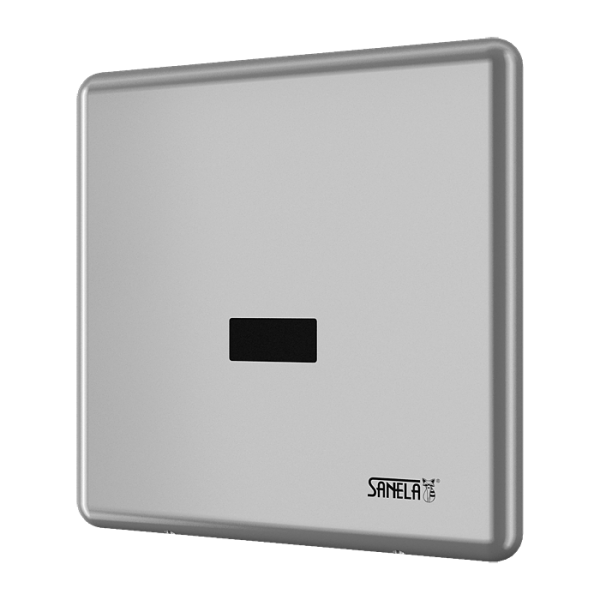

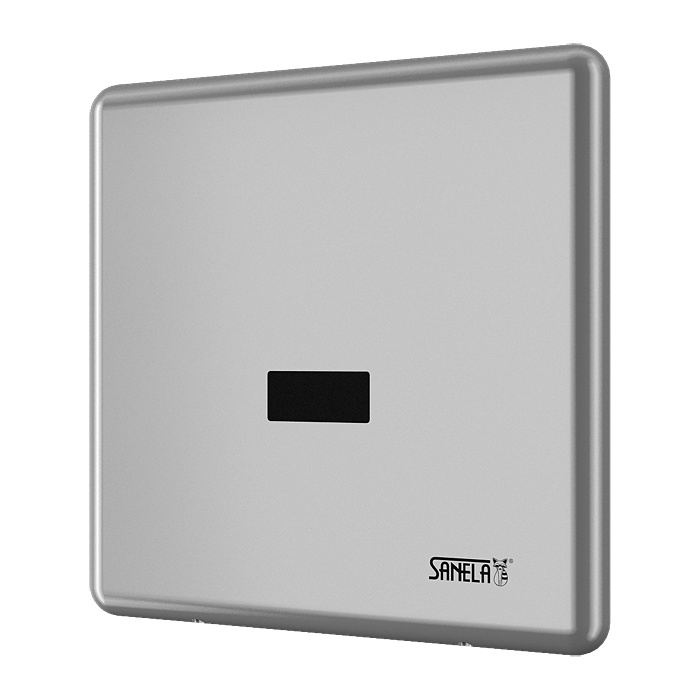

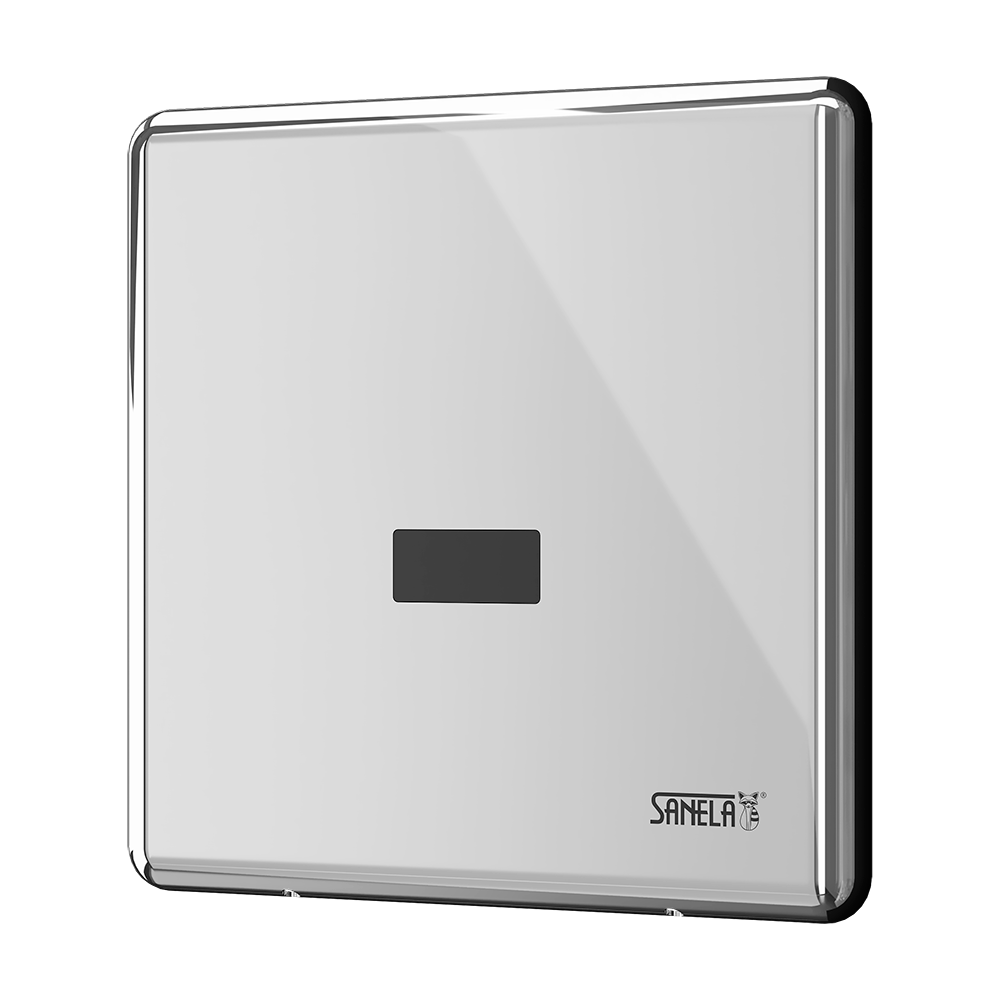

SLS 01AKB
Автоматическое управление душем для подачи подготовленной воды, с монтажной коробкой, 9 В
Характеристики
- system reacts to the user attendance in front of the sensor, minimum stay time in active range is 2 seconds
- water is flowing as long as an user is in the active range
- water stops after user leaving the active range (adjustable time delay 0,25 - 7,75 sec.)
- possibility of changing of time delay, active range and switching off by SLD 03
- function of automatic water stop after 5 minut of continuous flow
| Арт. № | 12017 |
| Название | SLS 01AKB |
Спецификация поставки
SLS 01AKB - supply No. 12017 - stainless steel cover with the electronics; mounting plastic box with a brass screw-coupling, electromagnetic valve (1 pc.) and ball stop valve (1 pc.); mounting set, lithium battery 9V/1200 mAh, type U9VL
Технические данные
Dimension of stainless steel cover: 170 x 170 x 10 mm
Dimension of plastic mounting box: 140 x 140 x 75 mm
Operating voltage: 9V
Active range : 0,3 - 0,7 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Dimension of plastic mounting box: 140 x 140 x 75 mm
Operating voltage: 9V
Active range : 0,3 - 0,7 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
